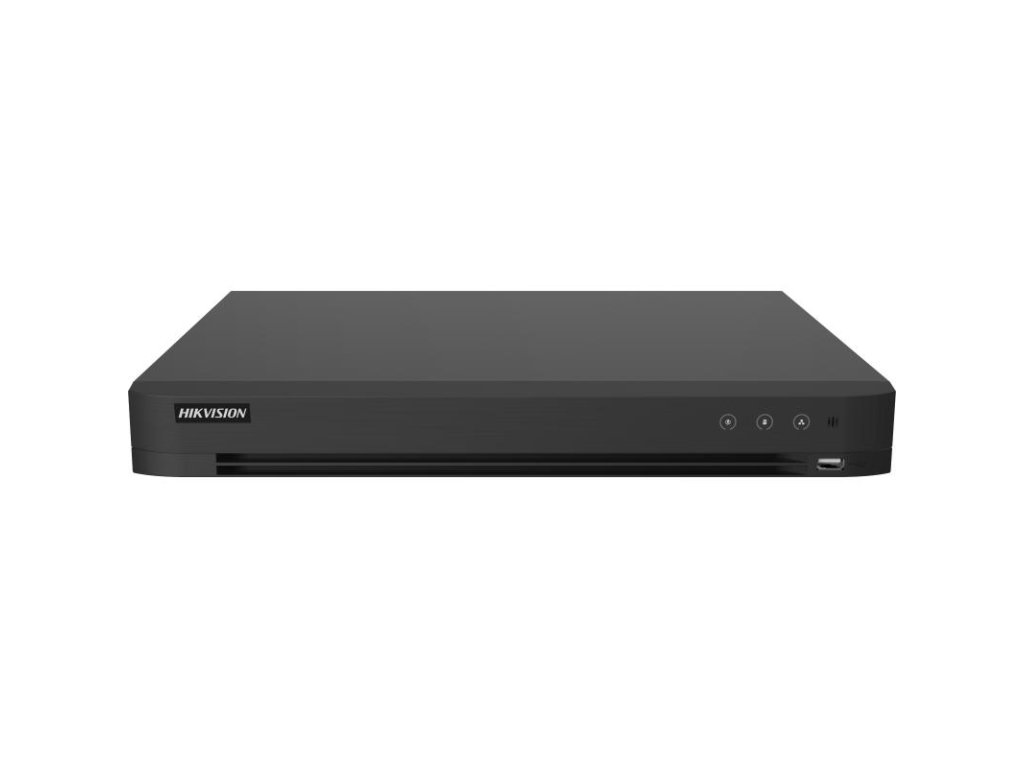

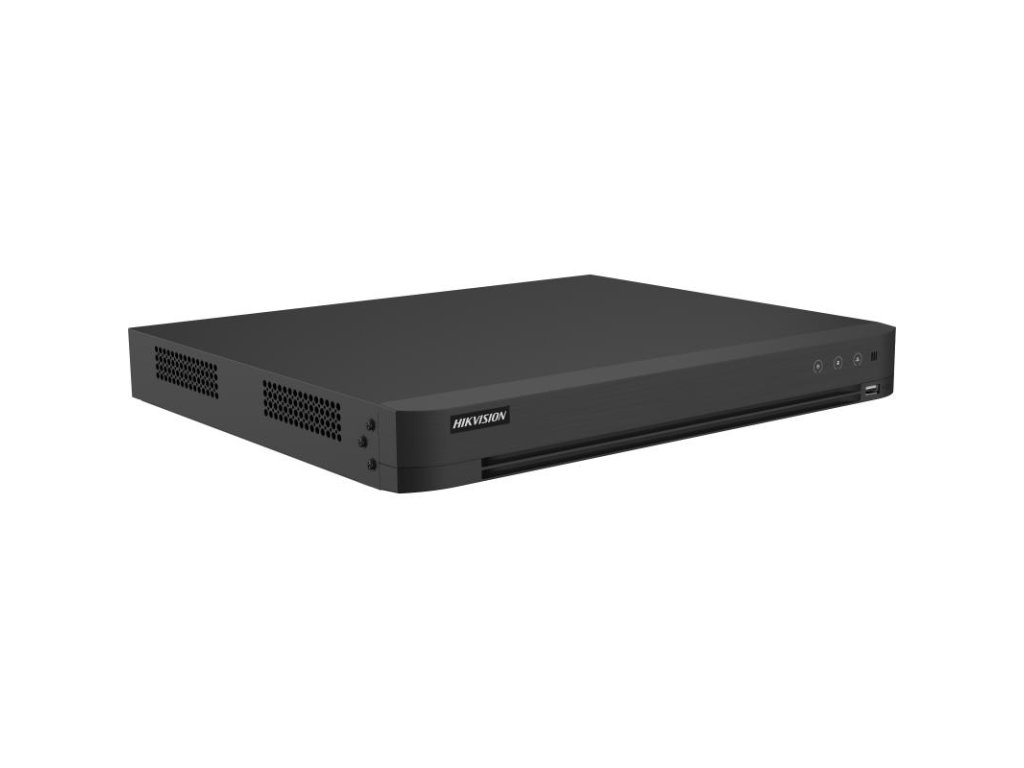

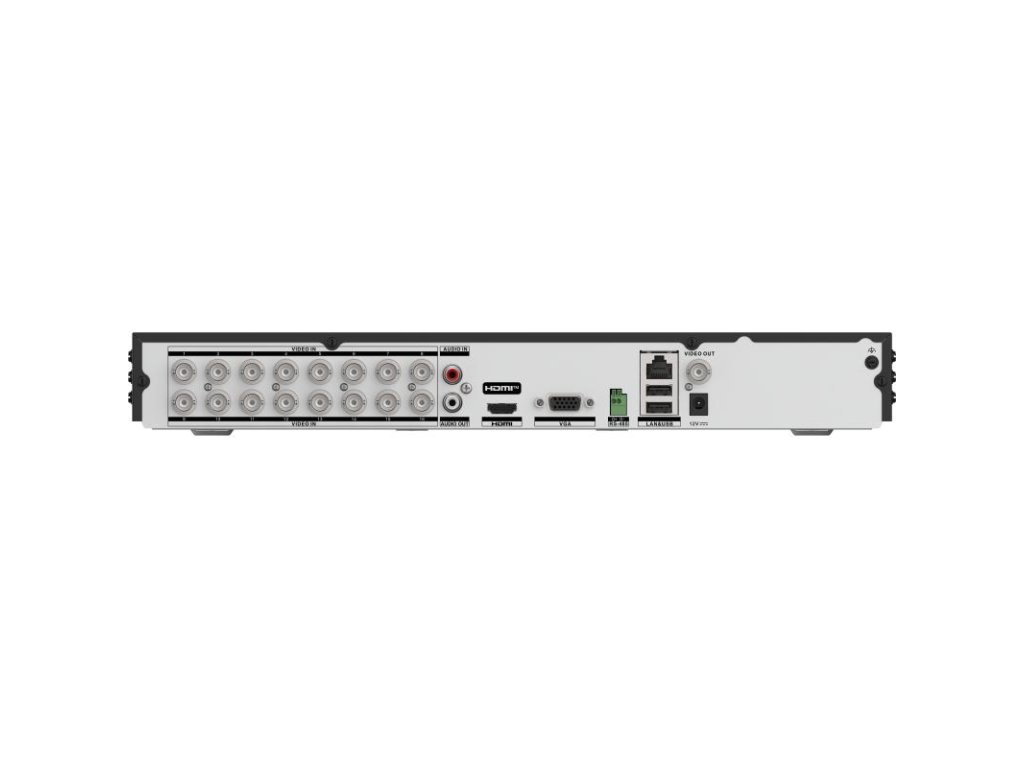

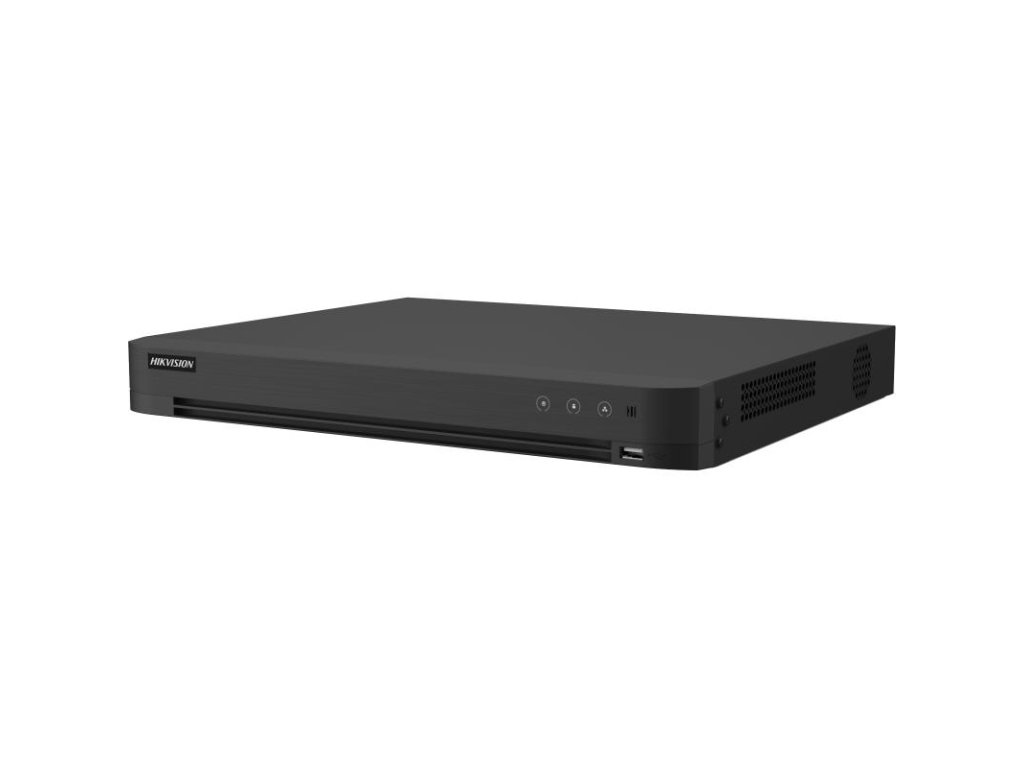

Hikvision iDS-7216HUHI-M2

Detailní popis produktu

• Facial Recognition
• Knihovna obrazů obličeje

  Up to 16 face picture libraries;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Face Picture Comparison (Captured from Camera)4-ch face picture comparison alarm (HD analog camera)

• Detekce pohybu 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels,

  it can classify human and vehicle, and extremely reduce false alarms caused by objects

  like leaves and lights;

  Quick search by object or event type is supported;

• Ochrana perimetru
• Human/Vehicle AnalysisUp to 8-ch (advanced model)

• Detekce obličeje
• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

• Video and Audio
• IP Video Input

  16-ch (up to 32-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analogový video vstup

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz,

  2K (2560 × 1440)/60Hz,

  1920 × 1080/60Hz,

  1280 × 1024/60Hz,

  1280 × 720/60Hz

  HDMI/VGA simultaneous output

• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

  HDMI/VGA simultaneous output

• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480

• Synchronní přehrávání16-ch
• HDTVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2960 x 1665)@25/20 fps,3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input8 MP(3840 × 2160)@12/15 fps, 3K(2880×1620)@25fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• Audio výstup1-ch, RCA (Linear, 1 KΩ)
• Zvukový vstup

  1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 KΩ)

  16-ch via coaxial cable

• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

• Recording
• Video kompreseH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Rozlišení kódování8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Snímková frekvence

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-streamSupport main stream or sub stream
• Typ streamuVideo, Video & Audio
• Audio kompreseG.711u
• Audio Bitrate64 Kbps

• Dekódování
• Schopnost dekódováníup to 24-ch 1080P@30fps

• Síť
• Total Bandwidth256 Mbps
• Síťový protokolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Vzdálené připojení128
• Síťové rozhraní

  1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface



• Auxiliary Interface
• SATA2 SATA interfaces
• KapacitaUp to 12 TB capacity for each disk
• Sériové rozhraníRS-485 (half-duplex)
• USB rozhraní

  Front panel: 1 × USB 2.0

  Rear panel: 2 × USB 3.0

• Vstup/výstup alarmuN/A (optional to support)

• Všeobecné
• Zdroj napájení12 VDC, 5 A
• Spotřeba≤ 15 W (without HDD)
• Pracovní teplota-10 °C to +55 °C (+14 °F to +131 °F)
• Pracovní vlhkost10% to 90%
• Rozměry (Š × H × V)384 × 317 × 52 mm (15.1 × 12.5 × 2.0 inch)
• Váha≤ 2.1 kg (4.6 lb)
